Datum Jelatek Development, Jln Jelatek


Datum Jelatek with the state-of-art steel structure ring bridge in midair, Jalan Jelatek.

The steel structure ring bridge was set at Level 25-27 of the building, connecting the 4 building blocks.


Modelling and validation of the steel structure design between construction drawings and shop drawings.

Simulation of the connection between the ring bridge and the strand-jack position/spherical bearing position.

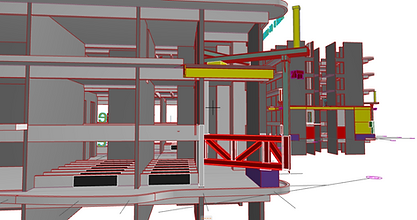

Close up 3D view of the Connection Details Model between the ring bridge and brackets.

Simulation of the connection between the ring bridge,the steel bracket, strand-jack, strengthening RC beam to ensure the lifting process can proceed accordingly.
